Product Overview

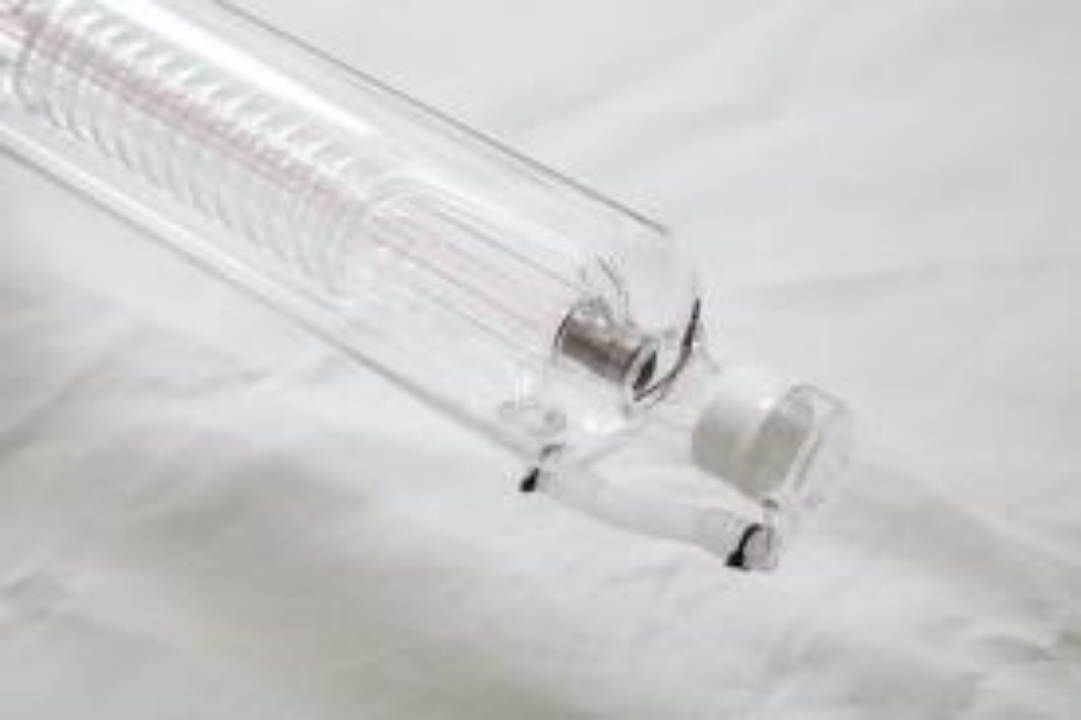

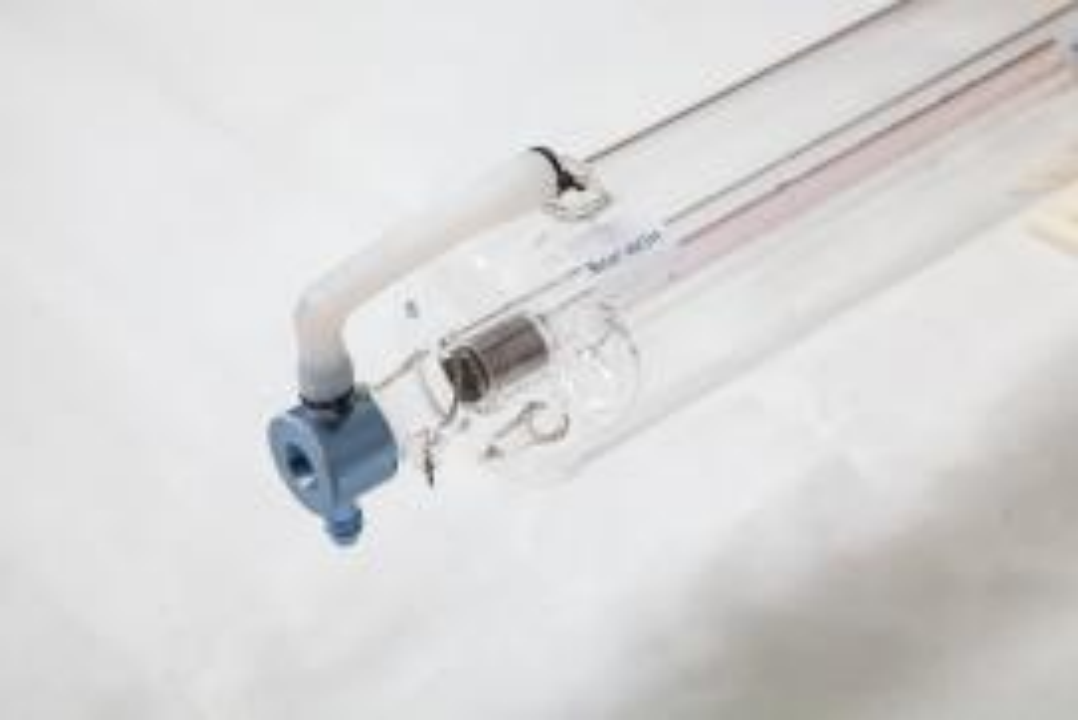

Our D-series CO₂ laser tubes are a classic core component of laser equipment, featuring high-power output and exceptional beam quality. Equipped with a proven water-cooling system, they efficiently regulate operating temperatures to ensure stable performance during extended operation, significantly extending service life. With precise spot focusing and smooth cut edges, these tubes are ideal for cutting and fine processing of various materials including acrylic, fabric, wood, and more. Whether for signage production, apparel cutting, or furniture panel machining, they deliver reliable, efficient laser processing support to power operations across industries.
Product Features
- •High Power Output
- •Superior beam quality
- •Mature liquid cooling system
- •Precise spot focusing
- •Smooth cut edges
- •Broad Material Compatibility
Application Areas
Signage ManufacturingGarment Fabric CuttingFurniture panel processingAcrylic CuttingFabric CuttingWood Processing
Model Specification
| Model | Length | Diameter | Rated Power | Peak Road Working Power | Catalyzer | Warranty Period |
|---|---|---|---|---|---|---|
| D40 | 700mm | Variable | 40W | 45W | YES | 6 months |
| D50 | 800mm | Variable | 50W | 55W | YES | 6 months |
| D60 | 1000mm/1250mm | Variable | 60W | 70W | YES | 6 months |
| D70 | 1100mm | Variable | 70W | 80W | YES | 8 months |
| D80 | 1250mm | Variable | 80W | 100W | YES | 12 months |
| D100 | 1450mm | Variable | 100W | 130W | YES | 12 months |
| D130 | 1650mm/1600mm | Variable | 130W | 150W | YES | 12 months |
| D150 | 1850mm | Variable | 150W | 180W | YES | 12 months |
